Manual Spray Lance

Inexpensive And Robust

What We Offer

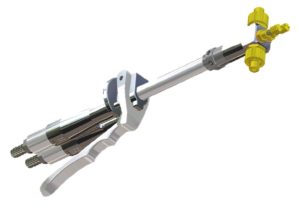

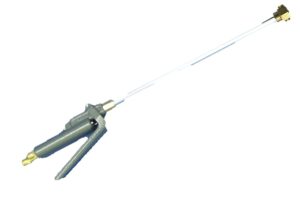

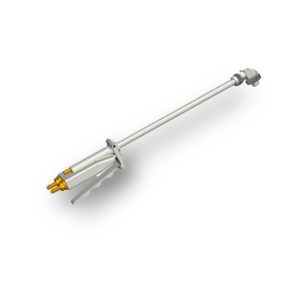

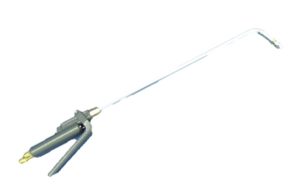

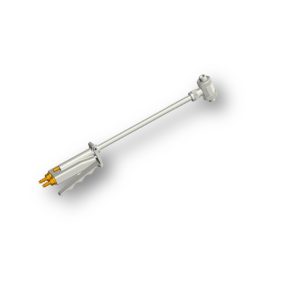

Our manual spray lances are designed for straightforward spraying needs in the forging and die-casting sectors. Their compact design makes them easy to handle, while the 2-step trigger is perfect for both spraying and dry blowing. The wide variety of spray lances and nozzles enables optimal adjustment of the spray aerosol to meet your requirements.

Technical Data

Jerko Basic HSL-1

  • Nozzle: Pipe nozzle Full cone
  • Pipe length: 450 mm*

Note: Pipe lengths up to 1,200 mm available upon request

Jerko Basic HSL-2

  • Nozzle: 2x compact nozzle without flow control (operates up and down simultaneously)
  • Pipe length: 450 mm*

Note: Pipe lengths up to 1,200 mm available upon request

Jerko Advanced HSL-2

  • Nozzle: 2x compact nozzle with flow control (operates up and down simultaneously)
  • Pipe length: 450 mm*

Note: Pipe lengths up to 1,000 mm available upon request

Jerko Pro HSL EJ86-1

  • Nozzle:
    • 1x EJ86
    •  Full cone options: 0° / 20° / 40° / 60° / 90° / 120°
    • Round jet options: 5 mm / 7 mm
  • Pipe length: 450 mm

Note: Pipe lengths up to 1,000 mm available upon request

Jerko Pro HSL EJ86-2

  • Nozzle:
    • 2x EJ86 (operates up and down simultaneously)
    • Full cone options: 0° / 20° / 40° / 60° / 90° / 120°
    • Round jet options: 5 mm / 7 mm
  • Pipe length: 450 mm*

Note: Pipe lengths up to 1,000 mm available upon request

Hose Packages Available:

  • 3 m
  • 5 m
